Changing Polymer Properties through Manipulation

In the first three editions of this column, the groundwork for better understanding the nature of polymers – vis-à-vis lower molecular mass materials – was laid. In this edition, we will look at factors that chemists, chemical engineers and materials scientists can, in principle, manipulate to change polymer properties. These include changes that can be made in composition, molecular structure and morphology.

Chemical Composition

Changing the chemical composition of the polymer through changes in monomer selection is perhaps the most obvious way to change polymer properties. After all, one would not expect poly(vinyl chloride) (PVC) to have the same set of properties as high-density polyethylene (HDPE), poly(acrylic acid) (PAA) or polycarbonate (PC). Different monomers, obviously, have different sizes, geometric structures, polarities and molecular masses – all of which have significant impact on the properties of the resulting polymer.

Arrangement of Monomers in a Macromolecular Chain

Homopolymers. Polymers consisting of a single monomer have only one possible arrangement of the monomer units in a macromolecular chain or “backbone.” This is illustrated in Figure 1.

Linear-homopolymer
Figure 1. Linear homopolymer

Copolymers. Polymers produced using two different monomers have several ways they can be arranged in the backbone. These different arrangements of the same two monomers would be expected to produce different polymer properties.

Alternating: In this case, one monomer is attached only to the second one and never to itself, as shown in Figure 2. To achieve this through synthesis, the two monomers must have little or no tendency to homopolymerize and a strong tendency to copolymerize with each other.

Linear-alternating-copolymer
Figure 2. Linear alternating copolymer

Random: It also is possible for two monomers to form a random arrangement in the polymer chain (Figure 3). This occurs when both monomers may readily either homopolymerize or copolymerize with each other. In other words, they have no preference when reacting together.

Linear-random-copolymer
Figure 3. Linear random copolymer

Block: A third possibility for two monomers reacting to make a copolymer is that they can form long “blocks” of homopolymer within the copolymer backbone, as illustrated in Figure 4. If the blocks differ in hydrophilicity (“water-loving”) characteristics, these can serve as surfactants. Blocking can occur when both monomers have a strong tendency to homopolymerize, but only a slight tendency to copolymerize with each other.

Linear-block-copolymer
Figure 4. Linear block copolymer

Terpolymers or Higher Order. Obviously, the larger the number of different monomers that are used to make a polymer, the larger the number of possible arrangements there are along the chain and the greater the number of end-use properties that are obtainable. It is not unusual for photopolymerizable formulations to contain an oligomer and two, three or more functional monomers.

Macromolecular Structure

As discussed in the first edition of Professor’s Corner, polymers can take on various structural arrangements.

Linear Polymers. Figures 1 through 4 all illustrate linear polymers, those that consist of single strands of macromolecules. Schematically, a linear polymer can be illustrated by a single, randomly oriented line, as shown in Figure 5. These may have a relatively high degree of microcrystallinity, due to the ability of the macromolecules to align with one another.

Schematic-linear-polymer
Figure 5. Schematic of a linear polymer



tree-limbs
Figure 6. A “tree limb” model of a branched polymer

Branched Polymers. Branched polymers contain long backbone chains with much smaller, but significant, side chains attached. Figure 6 depicts tree limbs illustrating a branched polymer. For branched polymers, the branches are the same monomer composition as that of the polymer backbone. Branched polymers tend to have relatively fewer microcrystalline domains, since the branches inhibit the backbones of the macromolecules from aligning. However, the branches themselves may align, producing branch microcrystallinity.

Graft Copolymers. This type of polymer is produced by reacting a previously synthesized linear polymer with a different type of monomer to produce “branches” that are different in composition from the polymer chain. The “tree limb” model in Figure 6 can be viewed to illustrate both a branched polymer and a graft copolymer. However, for the latter, one must imagine that the branches are made of a different type of wood than that of the tree! Such a strange mental image provides a fairly good conceptual understanding of the similarities and differences between branched polymers and graft copolymers.

crosslinked-polymer

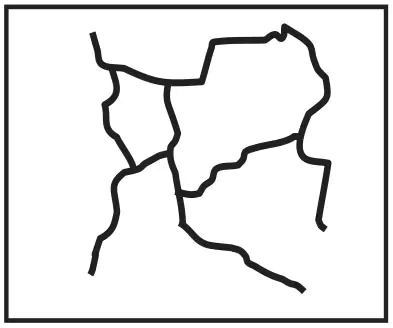

Figure 7. Schematic of a crosslinked
polymer

Crosslinked or “Network” Polymers. All commercially viable UV/EB-produced polymers are crosslinked. However, they also may contain oligomeric or polymeric fragments, as well as unreacted monomers that – for a variety of reasons – are not crosslinked into the three-dimensional network structure. A schematic representation of a crosslinked polymer is given in Figure 7. While this is a two-dimensional illustration, network polymers are three-dimensional in structure.

A useful model for an idealized crosslinked polymer is a diamond. Diamond is one of several known allotropic forms of carbon wherein every carbon atom is attached with covalent single bonds to four other carbon atoms which, in turn, are attached to three additional atoms, and so forth. Effectively, a pure, perfect diamond would be a single molecule of exceptionally large – essentially infinite – molecular mass. A diamond’s rigidity and hardness are a direct result of its heavily crosslinked structure.

Other Factors

Along with chemical composition, arrangement of monomers along the backbone and the overall structure of the macromolecules, a chemist can manipulate the molecular mass, molecular mass distribution and other factors – including how the polymer is processed during or after production – to bring about significant changes in final end-use properties. These topics will be explored in future editions of Professor’s Corner.  υ
